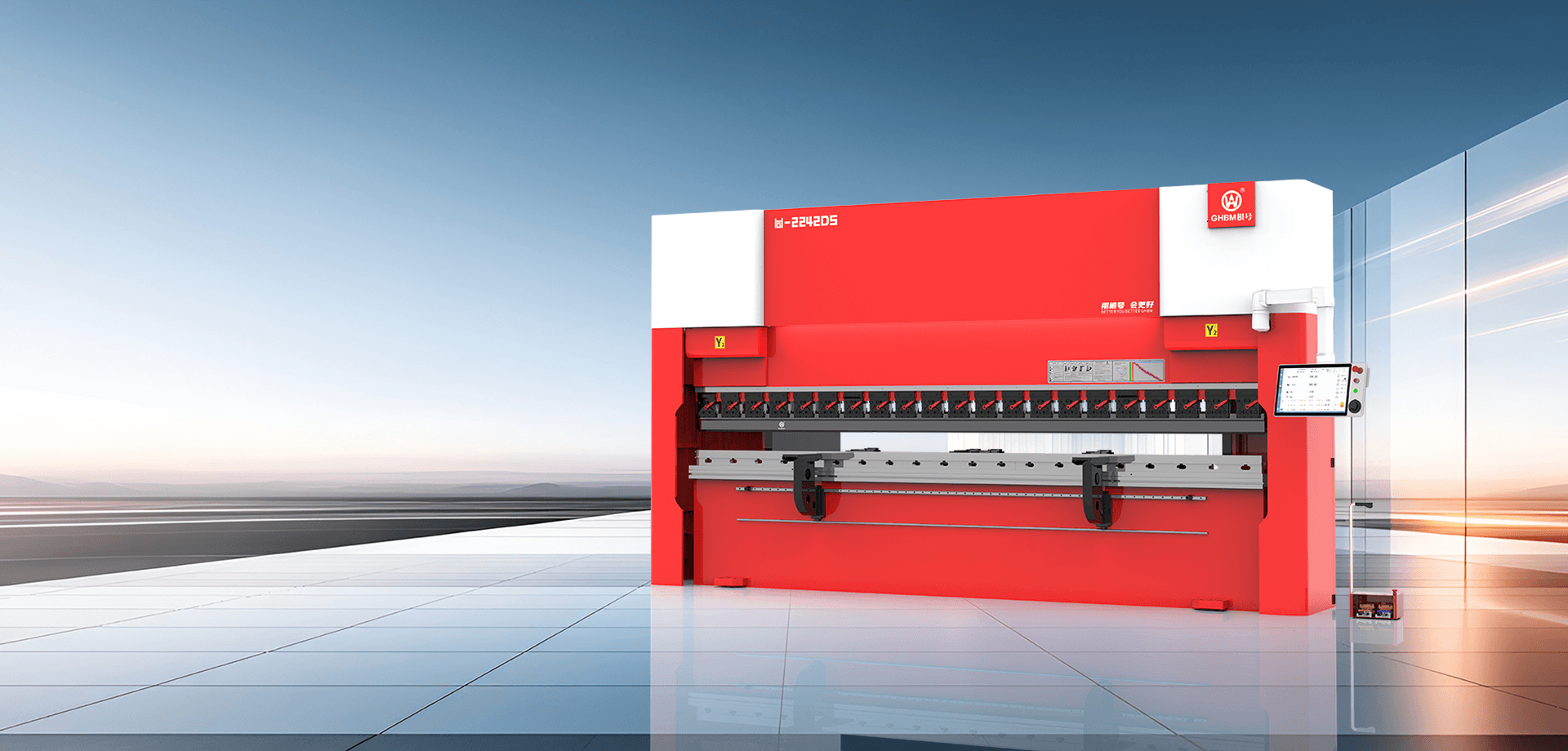

Electro-Hydraulic Servo CNC Press Brake
NT Series
- Precise Closed-Loop Control
- Heavy-Load Stability
- High Speed, Low Noise
- Low, Stable Oil Temperature

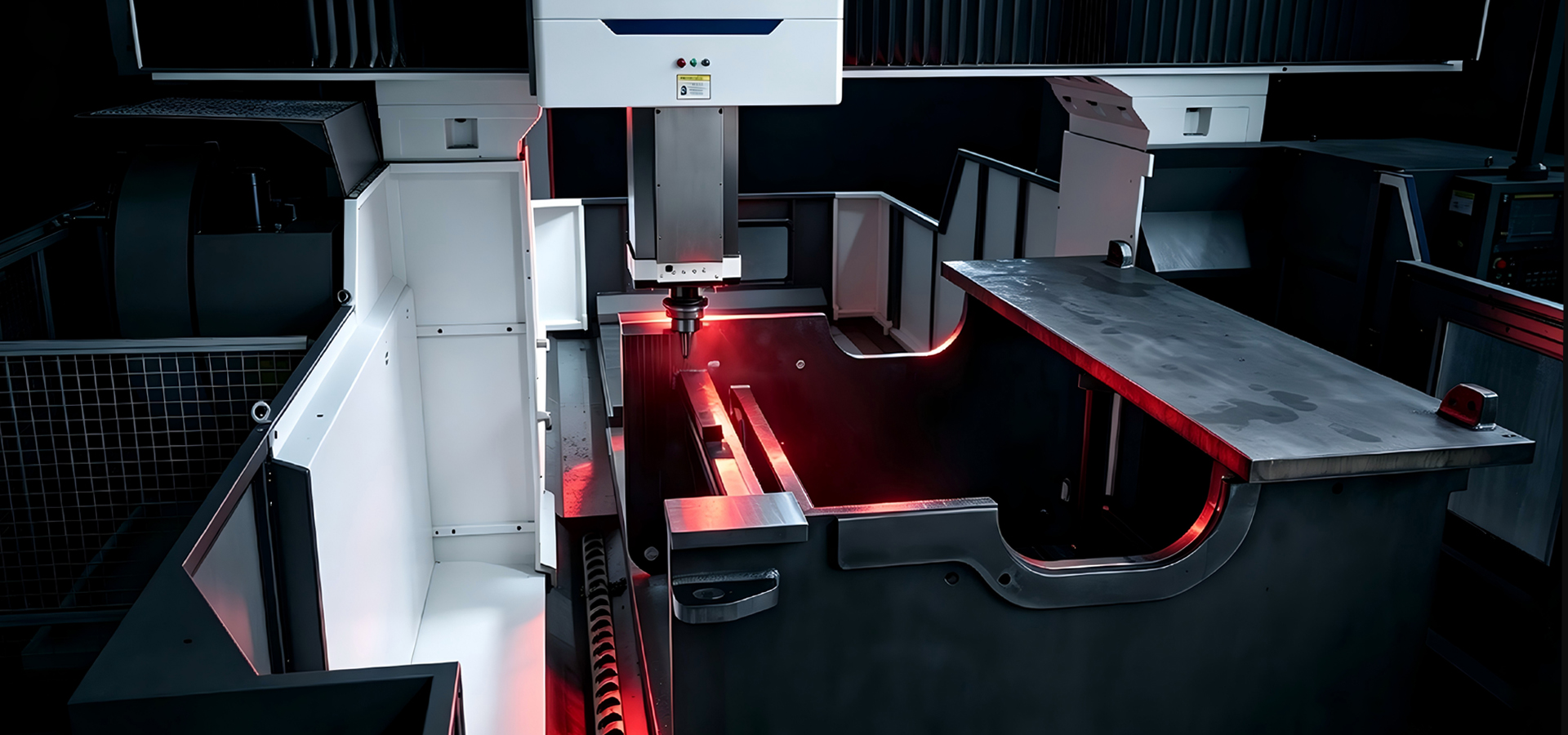

Five-Face Gantry Machining in a Single Setup
Frame Welding
CMM Inspection of Parallelism, Perpendicularity and Hole Position

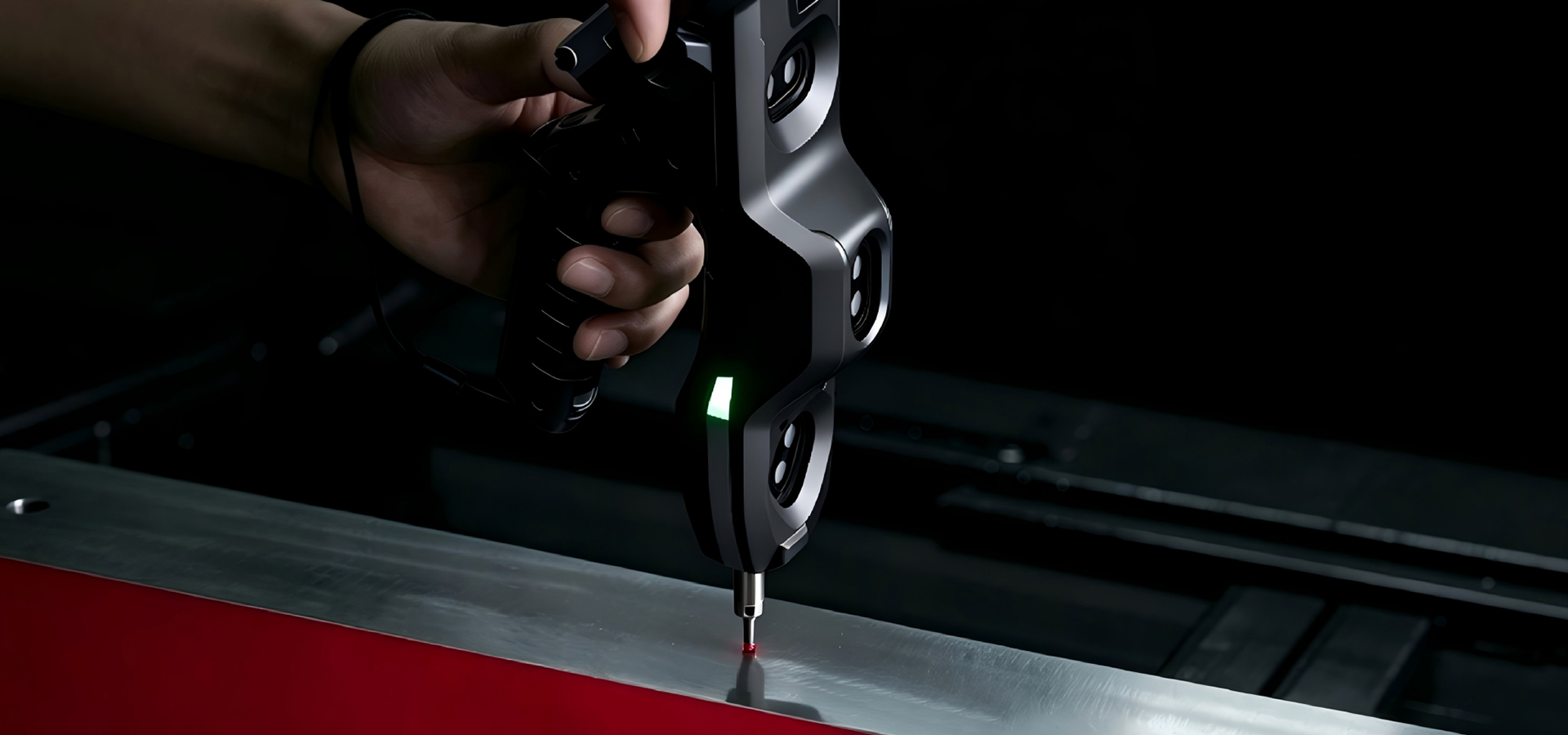

The cylinder mounting planes on the press brake frame are key datums for left/right cylinder synchronization and consistent bending angles. A high-precision portable CMM samples multiple points on the Y1 and Y2 cylinder contact surfaces, controlling flatness to 0.001mm. This eliminates planar deviations caused by machining stress and ensures gap-free cylinder assembly, maintaining stable bending angles over long service, reducing sway and angle drift, and extending precision service life.
Y1 Measurement Points
Y2 Measurement Points
Y1/Y2 Flatness Measurement Accuracy
Y1/Y2-to-Table Perpendicularity Measurement Accuracy
Y1/Y2 Measurement Points
Press Brake Worktable Measurement Points
Perpendicularity between the cylinder mounting surfaces and worktable is a key geometric datum. The Y1 and Y2 mounting datums are measured separately against the table to strictly control right-angle deviation. Errors can cause diagonal bending errors, sheet movement and unequal angles along different edges. Strict perpendicularity control keeps cylinder force normal to the table and balanced on both sides, eliminates inherent geometric errors, and maintains diagonal accuracy and angle stability over long use.
Hydraulic Servo Power Unit: Powerful Oil Pressure with Precise Force Control

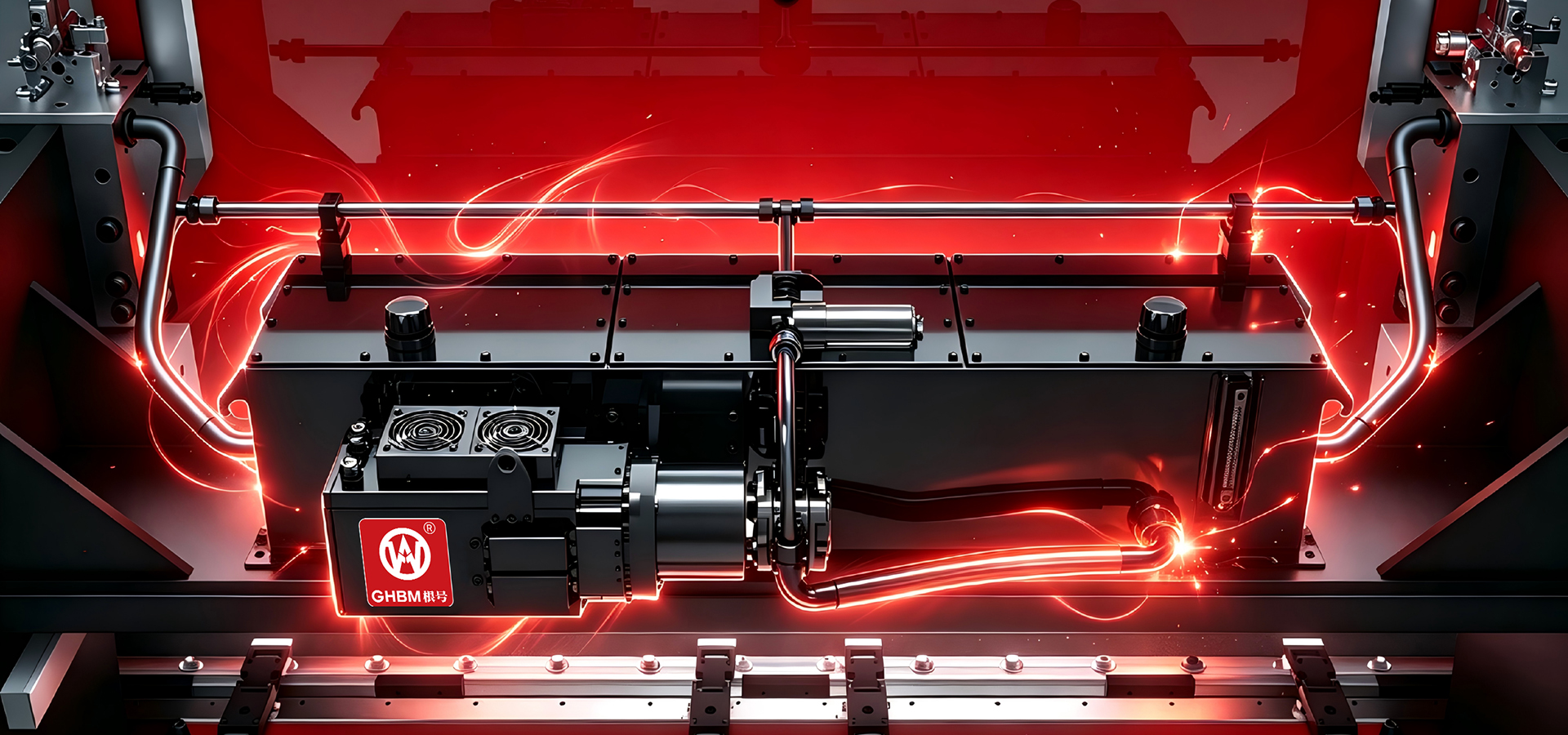

Precision Constant-Temperature Hydraulics for Stable Oil Temperature
Efficient cooling keeps hydraulic oil stable in the optimal 40℃ range. It prevents viscosity loss, seal aging and pressure instability caused by rising oil temperature, maintaining stable output during continuous operation, consistent bending accuracy and longer life for hydraulic components and oil.
Next-Generation 21.5-Inch High-End CNC System
Remote Diagnostics
More Precise, Safer Bending
Backgauge System
7Axes
Designed for High-Tonnage, Heavy-Duty Operation
The support structure combines rigidity and resistance to off-center loads, remaining stable during thick-plate bending with less drift and vibration. Precision drive screws ensure accurate, smooth backgauge positioning, maintaining dimensional accuracy and consistent forming during sustained heavy-duty work and supporting reliable long-term operation of high-tonnage equipment.

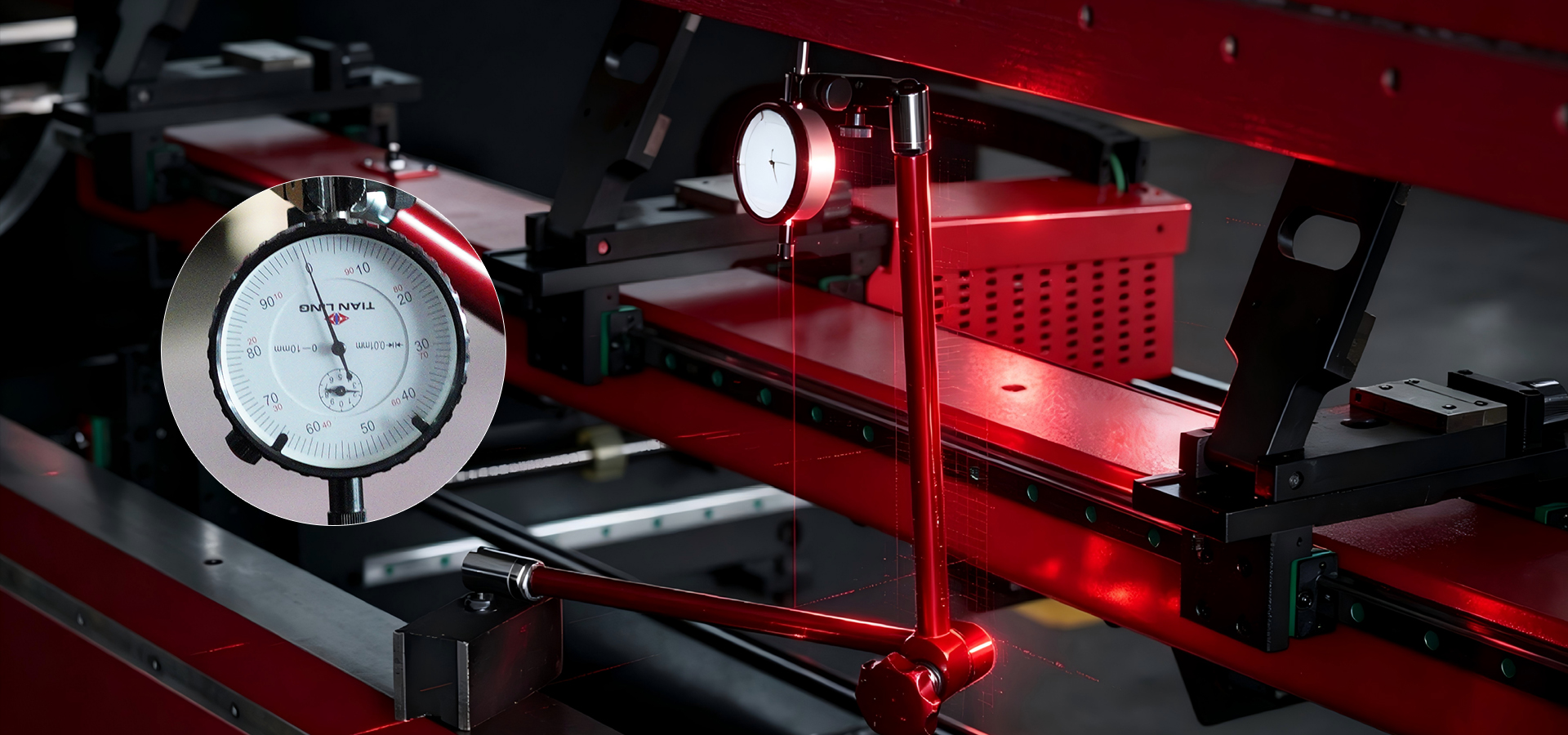

Item-by-Item Measurement for Strict Machine Assembly Accuracy
Dual-Rail Load-Bearing Backgauge Structure

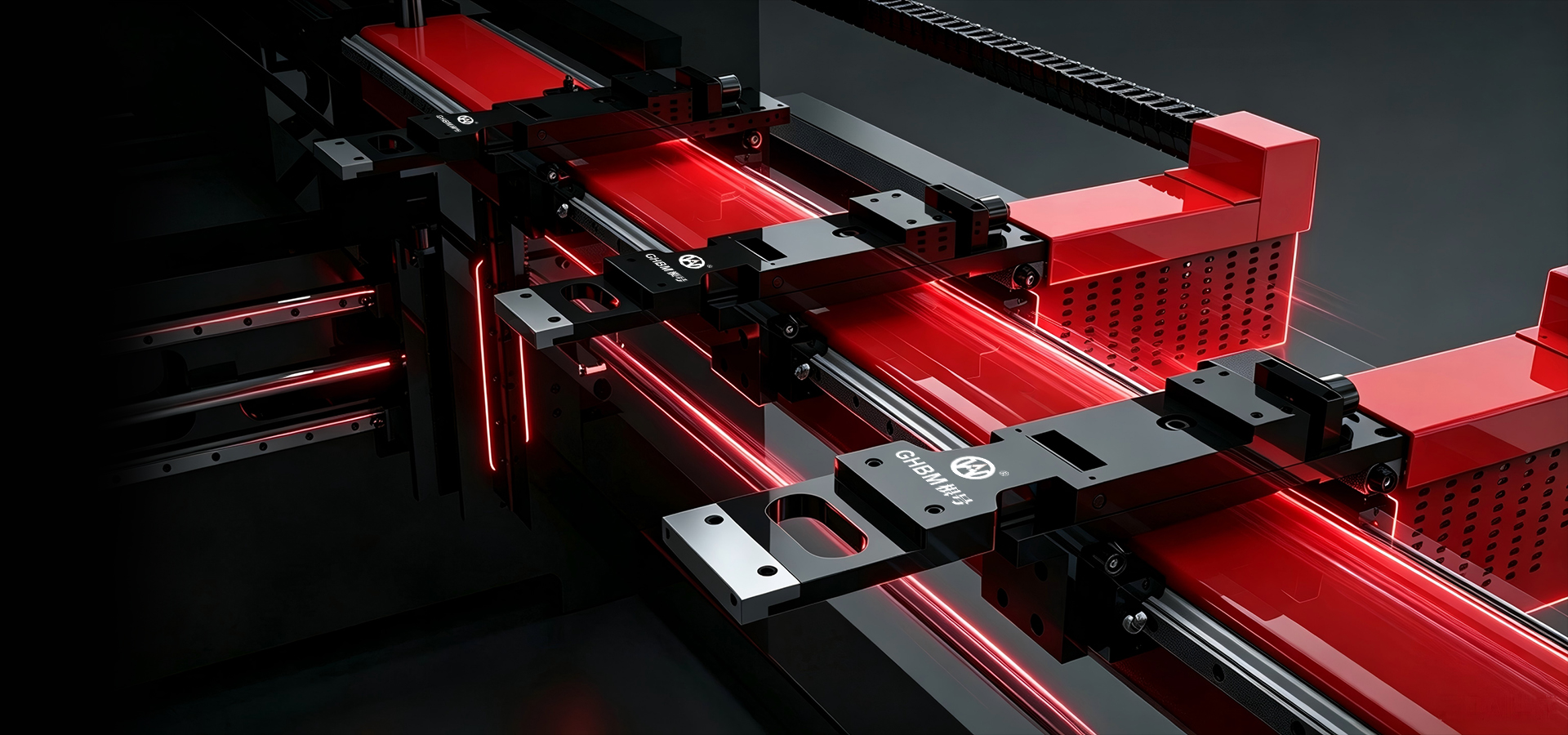

Two guide rails share the moving backgauge load, replacing conventional single-rail, single-point loading. High-rigidity steel rails strengthen the structure and resist beam sag and drift over long travel and under heavy loads. High-speed reciprocating positioning stays smooth with less vibration.
Performance Upgrades for Operator Safety and Machining Accuracy
Premium CNC press brake options include laser safety protection and laser precision devices. They protect the bending area and correct bending accuracy in real time. Compatible with multiple CNC press brake series, they are ideal for upgrading sheet metal equipment.
Improves operating convenience and workpiece positioning accuracy. Scans hazardous areas in real time without physically obstructed blind spots.
Three laser beams work independently and are evaluated jointly by intelligent algorithms, providing seamless coverage of the detection area.
Real-time laser angle measurement with dynamic compensation eliminates repeated test bends and machine adjustment.
Automates sheet loading, bending support, flipping and finished-part unloading, avoiding manual handling risks for heavy plate. Continuous unattended operation integrates closely with the press brake control system, maintaining heavy-workpiece accuracy and unlocking high-tonnage production capacity.
